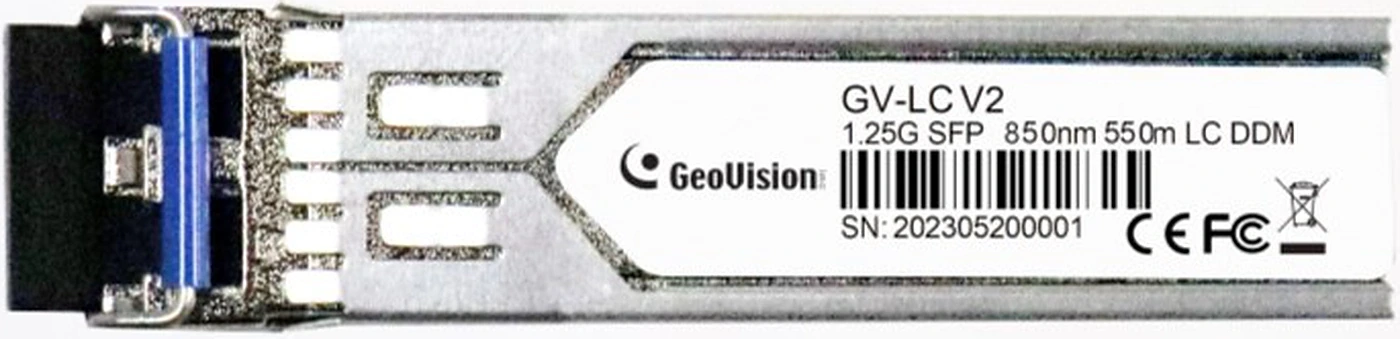

GV-LC10 V2 / GV-LC V2 1G SFP Optical Transceiver

SFP Transceiver – IEEE 802.3z 1000Base-SX/LX, hot-swappable

1000Base-LX/SX
SMF 20 km
MMF 550 m
LC

Plugs into the SFP port of a GV-PoE Switch to interface between the switch and optical fiber cables
Complies with IEEE 802.3z 1000Base-SX/LX standards
Hot-swappable design: install or remove without powering down the switch
GV-LC10 V2: single-mode fiber (SMF), 1310 nm, up to 20 km (65616 ft)
GV-LC V2: multi-mode fiber (MMF), 850 nm, up to 550 m (1804 ft)
LC connector

Model:: GV-LC10 V2 / GV-LC V2
Category:: SFP / SFP+ Transceivers, Switches & Networking
Brand:: GeoVision
Share:

The SFP Transceiver plugs into the SFP port of a GV-PoE Switch to interface between the switch and optical fiber cables. It complies with IEEE 802.3z 1000Base-SX/LX standards and features a hot-swappable design, allowing you to install or remove the device without powering down the switch.

Key features

Plugs into the SFP port of a GV-PoE Switch to interface between the switch and optical fiber cables
Complies with IEEE 802.3z 1000Base-SX/LX standards
Hot-swappable design: install or remove without powering down the switch
GV-LC10 V2: single-mode fiber (SMF), 1310 nm, up to 20 km (65616 ft)
GV-LC V2: multi-mode fiber (MMF), 850 nm, up to 550 m (1804 ft)
LC connector
CE / FCC / RoHS compliant
Compatible with 25 GV-APOE / GV-POE switch models

Models

GV-LC10 V2	IEEE 802.3z 1000Base-LX, single-mode fiber (SMF), 1310 nm, up to 20 km
GV-LC V2	IEEE 802.3z 1000Base-SX, multi-mode fiber (MMF), 850 nm, up to 550 m

GV-LC10 V2 (single-mode)
Network Standard	IEEE 802.3z 1000BaseLX
Wavelength	1310 nm
Media	SMF (single-mode fiber)
Distance	Up to 20 km (65616 ft), 9 µm fiber
TX Power	-9 ~ -3 dBm
RX Sensitivity	Max. -23 dBm
GV-LC V2 (multi-mode)
Network Standard	IEEE 802.3z 1000BaseSX
Wavelength	850 nm
Media	MMF (multi-mode fiber)
Distance	Up to 550 m (1804 ft), 50 µm fiber
TX Power	-9 ~ -3 dBm
RX Sensitivity	Max. -18 dBm
Common
Connector Type	LC
Hot-swappable	Yes
Operating Temperature	0 °C ~ 70 °C (32 °F ~ 158 °F)
Certifications	CE / FCC / RoHS compliant
Compatibility
GV-APOE Switches	GV-APOE0410-E, GV-APOE0811, GV-APOE0811-V2, GV-APOE081C, GV-APOE0812, GV-APOE0812-E, GV-APOE1611, GV-APOE1611-V2, GV-APOE1612, GV-APOE2411, GV-APOE2411-V2, GV-APOE2412, GV-APOE4813
GV-POE Switches	GV-POE0410-E, GV-POE0410-E-V2, GV-POE0801, GV-POE0811-V2, GV-POE0812, GV-POE1601, GV-POE1601-V2, GV-POE1611, GV-POE2401, GV-POE2401-V2, GV-POE2411, GV-POE2411-V2
