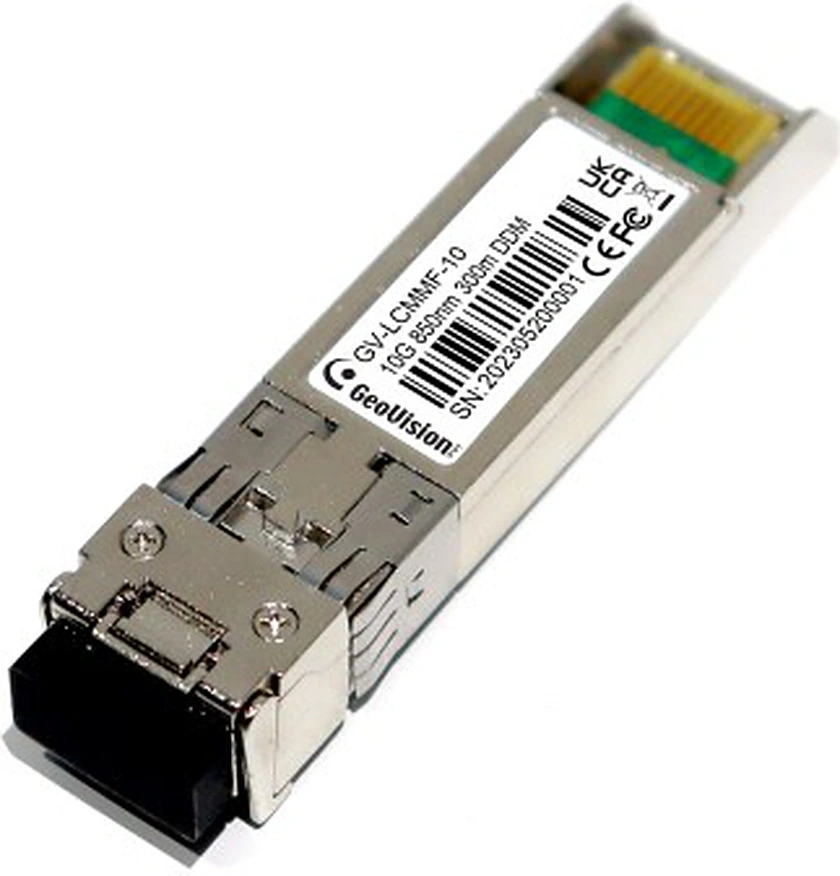

GV-LCSMF-10 / GV-LCMMF-10 10G SFP+ Optical Transceiver

SFP+ Transceiver – IEEE 802.3ae 10GBase-ER/SR, hot-swappable

10GBase-ER/SR
SMF 40 km
MMF 300 m
LC

Plugs into the SFP+ port of a GV-PoE Switch to interface between the switch and optical fiber cables
Complies with IEEE 802.3ae 10GBase-ER/SR standards
Hot-swappable design: install or remove without powering down the switch
GV-LCSMF-10: single-mode fiber (SMF), 1310 nm, up to 40 km (131234 ft)
GV-LCMMF-10: multi-mode fiber (MMF), 850 nm, up to 300 m (984 ft)
GV-LCMMF-10 operates from -40 °C to 85 °C (-40 °F ~ 185 °F)

Model:: GV-LCSMF-10 / GV-LCMMF-10
Category:: SFP / SFP+ Transceivers, Switches & Networking
Brand:: GeoVision
Share:

The SFP+ Transceiver plugs into the SFP+ port of a GV-PoE Switch to interface between the switch and optical fiber cables. It complies with IEEE 802.3ae 10GBase-ER/SR standards and features a hot-swappable design, allowing you to install or remove the device without powering down the switch.

Key features

Plugs into the SFP+ port of a GV-PoE Switch to interface between the switch and optical fiber cables
Complies with IEEE 802.3ae 10GBase-ER/SR standards
Hot-swappable design: install or remove without powering down the switch
GV-LCSMF-10: single-mode fiber (SMF), 1310 nm, up to 40 km (131234 ft)
GV-LCMMF-10: multi-mode fiber (MMF), 850 nm, up to 300 m (984 ft)
GV-LCMMF-10 operates from -40 °C to 85 °C (-40 °F ~ 185 °F)
LC connector
CE / FCC / RoHS compliant
Compatible with the GV-APOE4813 switch

Models

GV-LCSMF-10	IEEE 802.3ae 10GBase-ER, single-mode fiber (SMF), 1310 nm, up to 40 km
GV-LCMMF-10	IEEE 802.3ae 10GBase-SR, multi-mode fiber (MMF), 850 nm, up to 300 m

GV-LCSMF-10 (single-mode)
Network Standard	IEEE 802.3ae 10GBase-ER
Wavelength	1310 nm
Media	SMF (single-mode fiber)
Distance	Up to 40 km (131234 ft)
TX Power	-6 ~ 1 dBm
RX Sensitivity	Max. -15 dBm
Operating Temperature	0 °C ~ 70 °C (32 °F ~ 158 °F)
GV-LCMMF-10 (multi-mode)
Network Standard	IEEE 802.3ae 10GBase-SR
Wavelength	850 nm
Media	MMF (multi-mode fiber)
Distance	Up to 300 m (984 ft)
TX Power	-7 ~ -1 dBm
RX Sensitivity	Max. -11 dBm
Operating Temperature	-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Common
Connector Type	LC
Hot-swappable	Yes
Certifications	CE / FCC / RoHS compliant
Compatibility
Compatible Switches	GV-APOE4813
